Diatone Spadger 180 Build Guide

Posted on By Mikey

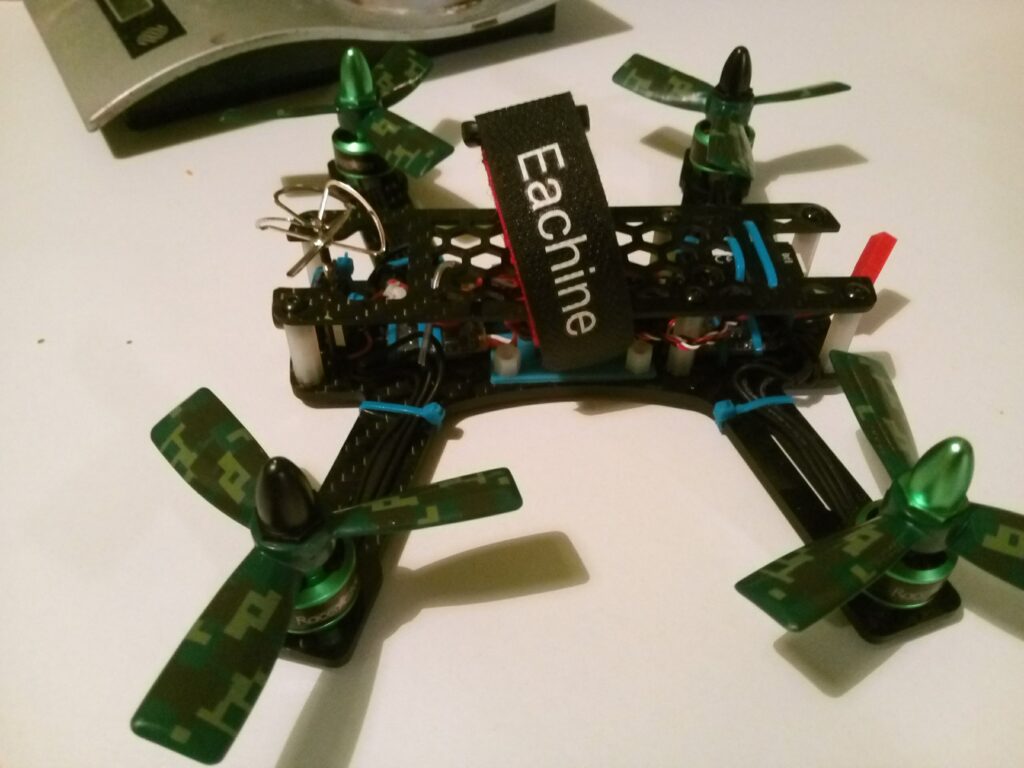

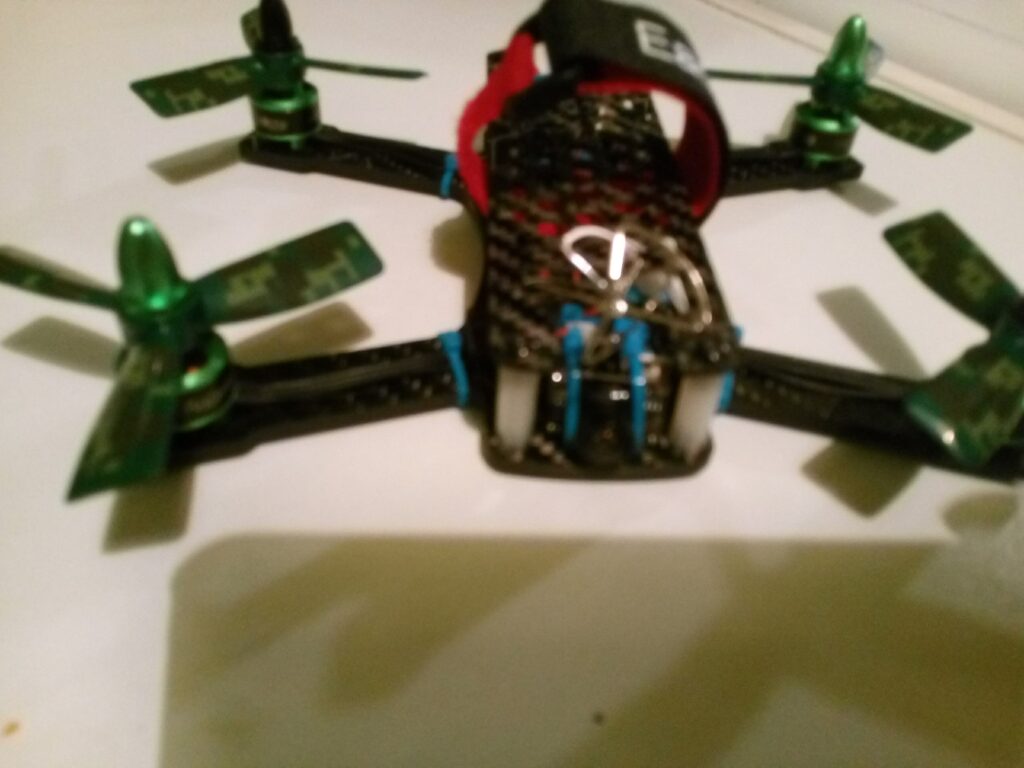

My diatone spadger 180 build…

The diatone spadger 180 is super low profile lightweight frame and this build uses lightweight/micro components to make this quadcopter very rapid especially when turning and rolling/flipping.

Parts List

FrameFrame is no longer sold by banggood 🙁 Try… ZG180 180MM Carbon Fiber Mini Frame Kit With 3D Printed Camera Bracket Diatone Spadger 150 Carbon Fiber Frame Kit With BEC Board RC Multirotor £8-10
Flight ControllerDiatone D-Link F3 Mini Flight Controller MPU6050 Integrate PDB 27x27mm£11.65
ESCs4 x Tarot TL300G5 6A 2-3S BLHeli Brushless ESC Supports OneShot For RC Multirotors£18.32
Motors4 x Kingkong 1306 3100KV 2-4S Brushless Motor CW CCW for FPV Racer£27.64
Propellers12PCS JJPRO-3045 3-Blade ABS CW/CCW Propeller Blue/Green/Yellow for FPV Racing£3.99

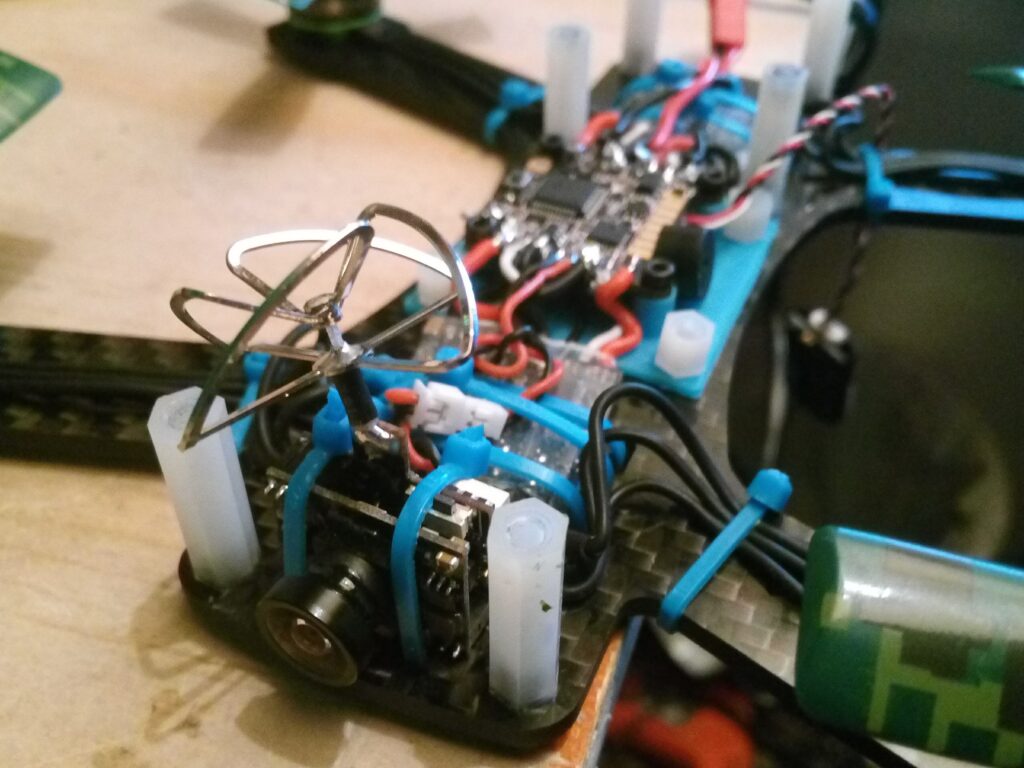

FPV TransmitterEachine TX03 NTSC Super Mini 0/25mW/50mW/200mW Switchable AIO 5.8G 72CH VTX 600TVL 1/3 Cmos FPV Camera£15.82

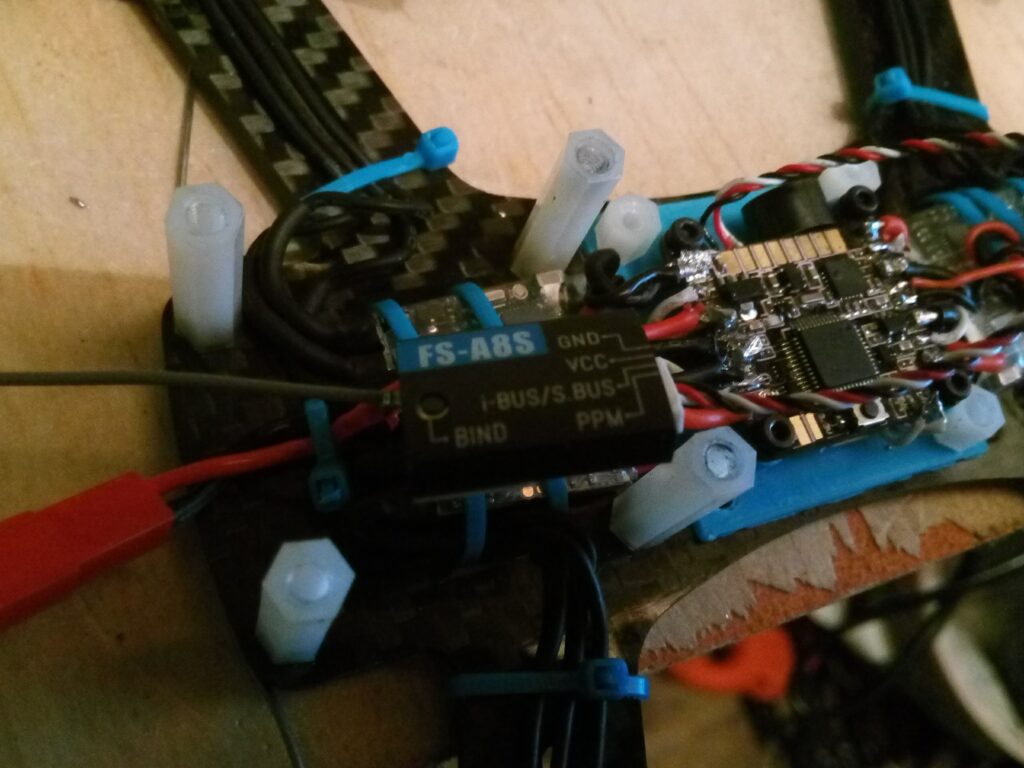

ReceiverFlysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output£8.32

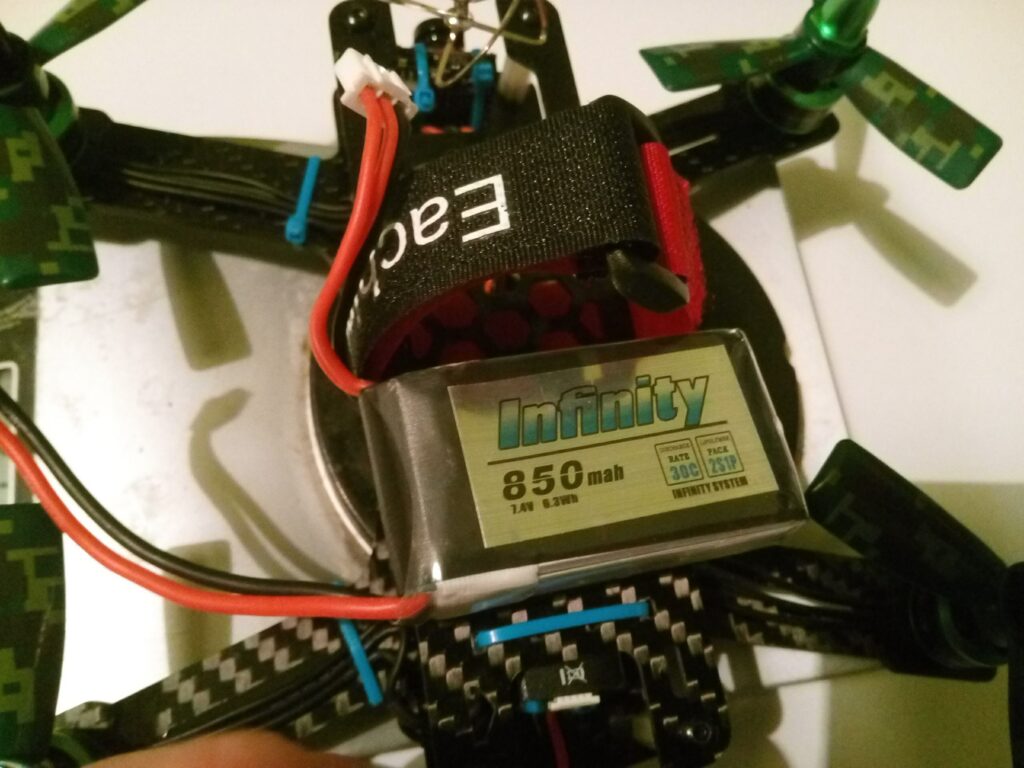

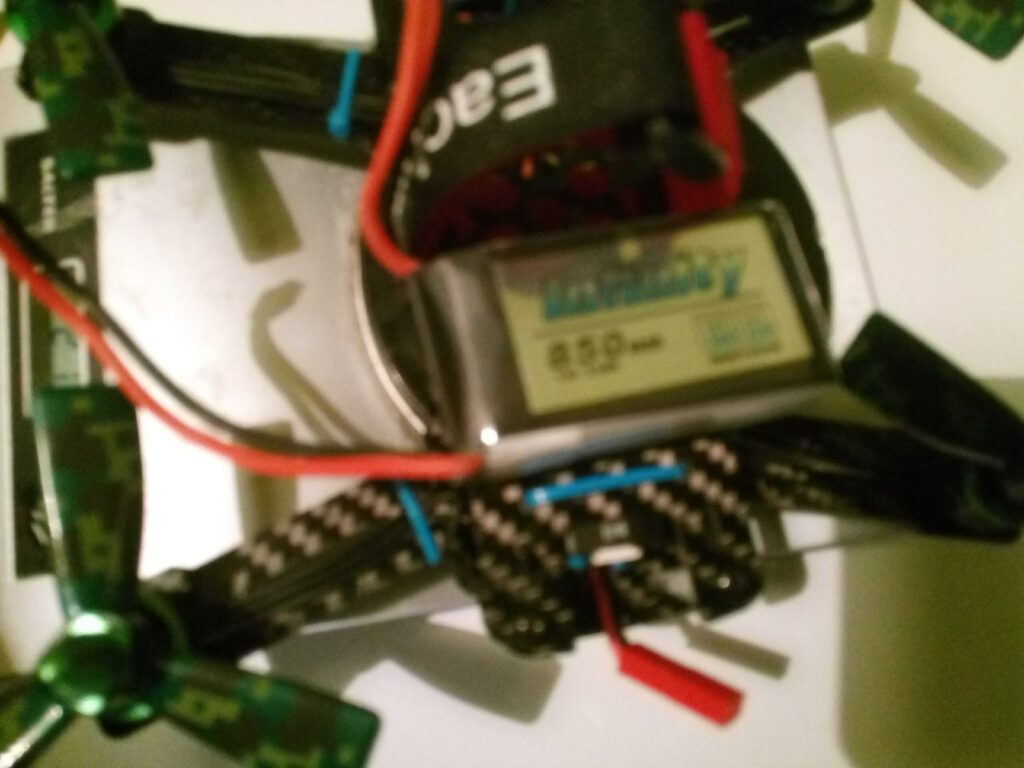

BatteriesZOP Power 11.1V 1100mAh 65C 3S Lipo Battery XT60 Plug£9.99
